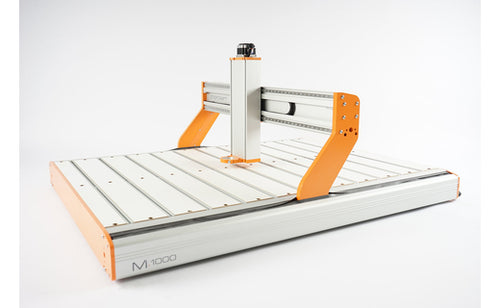

STEPCRAFT M-シリーズ

定価 ¥452,525 セール

在庫数 : 0

商品タイプ :

メーカー : STEPCRAFT

商品コード: STEm500



More than a standard CNC machine! From Freestyle MillingTM to two different machine table heights, the STEPCRAFT M-Series offers features never seen before. This makes the STEPCRAFTM-Series the most mobile and versatile CNC router in the world.

With the STEPCRAFT M-Series you can easily process floors, large sheet material or even existing furniture. As all the STEPCRAFT D-Series CNC tools are compatible with the STEPCRAFT M-Series as well, you can set your creativity free and use your CNC router for milling, laser engraving, cutting, 3D printing or engraving. Thus, the STEPCRAFT M-Series is perfectly suited for the use in workshops, schools or production halls.

Thanks to the multitude of available tools, you can processs a variety of different materials on your STEPCRAFT M-Series:

  • Wood: Softwood, Hardwood, plywood, laminated wood
  • Plastics: Thermoplastics, ABS, PE, PP, soft / hard PVC, Lexan®, polyamid, Plexiglas®
  • Carbon
  • Non-ferrous metals
  • Elastomers, thermosets
  • Mixed materials


The Ready-to-Run CNC System will be perfectly assembled in our headquarter by STEPCRAFT expert technicians. For an additional protection, we will add a Bosch Rexroth cover strip to the linear guide X of your CNC router.

  • Supplied with all components necessary for operation
  • Integrated modular control electronics for an easy connection to the computer via USB interface resp. via optional parallel or optional Ethernet RJ45 interface

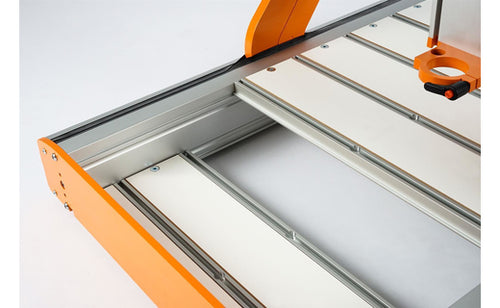

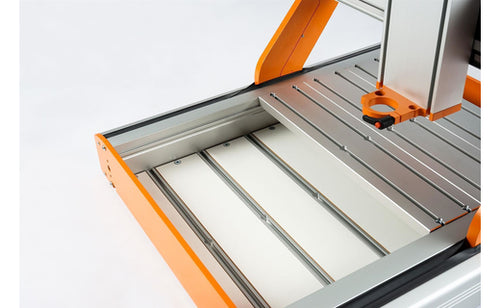

  • MDF machine table with aluminum T-slots resp. optional aluminum T-slot table

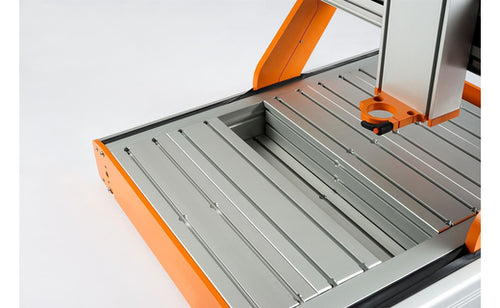

  • Two different machine table heights
  • Bosch Rexroth ball bearing guide
  • igus® dryspin threaded lead screws with double lead screw nuts adjustable to each other resp. optional HIWIN® ball screws
  • Flexi GuidesTM to securely guide cables and tubes
  • Powerful motors Nema 23
  • In-house development of STEPCRAFT aluminum profiles with innovative high rigidity X-profile (registered utility model)
  • Standard Ø 43 mm tool holder enables the use of third-party devices (if necessary with adapter)

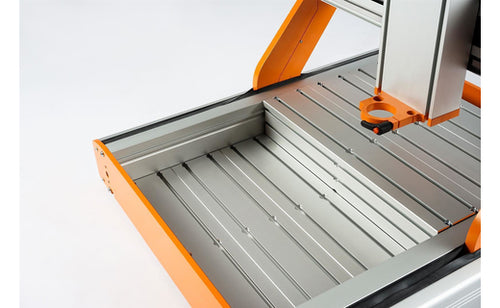

  • Completely removable machine table

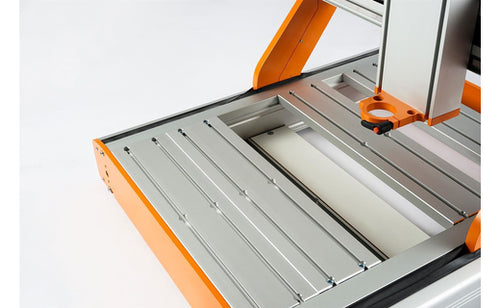

  • Freestyle MillingTM with optional vacuum panels (registered utility model)
  • Made in Germany
  • 3 years manufacturer's warranty
  • Backlash: < 0.05 mm (with optional HIWIN® ball screws: < 0.03 mm)



size

製品型番 M500 M700 M1000
製品寸法(X,Y,Z - mm) 583×726×646 713×926×646 913×1226×646
作業領域(X,Y,Z - mm) 348×543×194 479×743×194 679×1044×194
クランピング(X,Y - mm) 513×650 643×850 843×1150

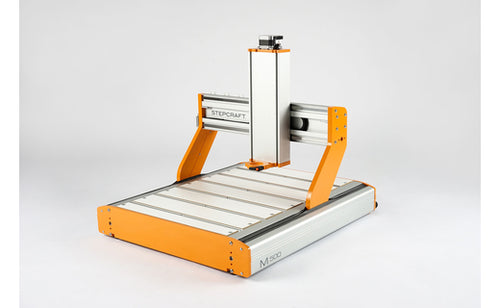

M500

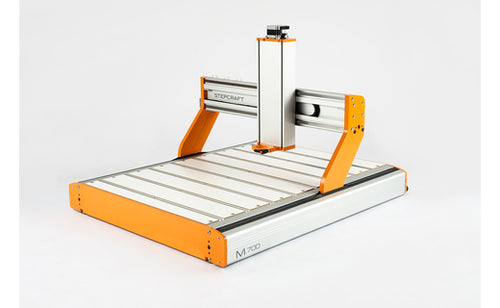

M700

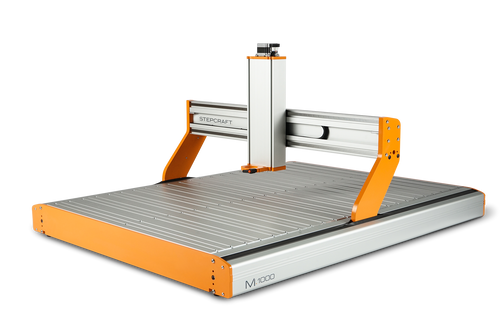

M1000

Control Software

  • CNC machine available without control software or with WinPC-NC or UCCNC.

Scope of Delivery

  • Complete CNC DIY kit including all mechanical and electronic components
  • USB- or parallel cable connection
  • 3x Flexi GuidesTM
  • Operating manual

System Requirements

  • PC with 1 GHz processor
  • USB interface
  • Windows® XP or higher (32/64 bit)
  • MAC OS X 10.3.9 or higher with Windows® emulation

Support

マニュアル集

組み立てガイド(抜粋)】 ※ 製品お買上げ時に詳細な説明書が付属いたします。

【操作ガイド】

Machine Table Setup Assistance

Freestyle Milling 操作ガイド

初期設定マニュアル】 ※ 弊社ではUCCNCのみサポート致しております。



モデル Shipping weight SEOtitle
M-500 25,09 Kg CNC Portalfräse STEPCRAFT M.500 als Bausatz CNC Fräsen Werkstatt, Schule, Produktion
M-700 28,46 Kg CNC Fräsmaschine STEPCRAFT M.500 als Bausatz CNC Fräsen Werkstatt, Schule, Produktion
M-1000 33,37 Kg CNC Maschine STEPCRAFT M.500 als Bausatz CNC Fräsen Werkstatt, Schule, Produktion
